CIRS 068胎儿超声模体,CIRS 068模体
CIRS 068胎儿超声模体用于演示解剖学检查和估计胎龄
CIRS 068胎儿超声模体有助于在非压力情况下进行胎儿超声检查技术的教学和演示。
组织当量完全胎儿模型被悬浮在非回声，羊水样环境中。
CIRS 068胎儿超声模体被安置在一个有2个视野的可旋转的圆筒内。
对于更具挑战性的检查可以实现各种胎儿/换能器取向。双顶径（BPD），前/后径（APD），股骨长度，腹围和冠与臀长的经腹测量可以被采用。
所有的解剖结构都是基于21周胎龄正常胎儿生长率的已公布生物特征数据（1）。这可以评估大多数超声波扫描仪常用的复合测量技术和生物识别分析程序。
CIRS 068胎儿超声模体也可以用于三维重建，表面渲染和各种其他应用。可选手提箱。
CIRS 068胎儿超声模体特征：
完整的胎儿外部解剖和周围非无回声的介质
与头骨上部不对称的头部
左右脑叶
侧脑室和第三脑室
右侧股骨干和左侧股骨干远端骨骺
Fetal Ultrasound Biometrics Training Phantom CIRS 068
For demonstration of anatomic examination and estimation of gestational age
Fetal Ultrasound Biometrics Training Phantom CIRS 068
The CIRS Model 068 Fetal Ultrasound Biometrics Phantom facilitates teaching and demonstration of fetal ultrasound examination techniques in a non-stressful situation.
A tissue equivalent full fetal model is suspended in a non-echoic, amniotic fluid-like environment.
The phantom is housed in a rotatable cylinder with 2 fields of view.
A variety of fetal/transducer orientations can be achieved for more challenging examinations. Transabdominal measurements of biparietal diameter (BPD), anterior/posterior diameter (APD), femur length, abdominal circumference and crown to rump length can be taken.
All anatomies are based on published biometric data at normal fetal growth rates for a gestational age of 21 weeks(1). This enables assessment of composite measurement techniques and biometric analysis programs common to most ultrasound scanners.
The phantom can also be used for 3D reconstructions, surface rendering and a variety of other applications. Optional carrying case is available.
Features:
Complete external fetal anatomy and surrounding non-echoic medium
Asymmetric head with upper portion of the skull
Right and left brain lobes
Lateral and third ventricles
Right and left femoral shafts with distal epiphysis

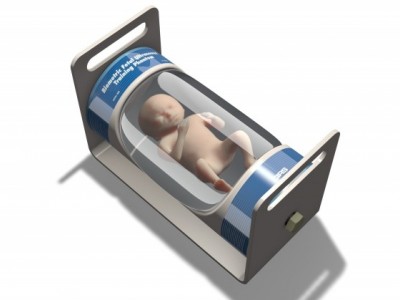

CIRS 068胎儿超声模体,CIRS 068模体实物拍摄图：
